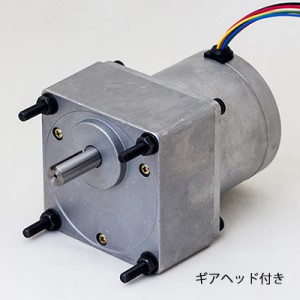

SQ7-3L with External driver
- Product Category
- DC Brushless motor
- Series of Product
- SQ Series
- Purpose
- speed-control
- Pairing Gearhead
- Parallel Shaft (平行軸ギアヘッド)
Specification
| Model SQ7-301 |
Rated | Variable Speed Range [r/min] |
Maximum Current [A] |
Start Torque [N・m] |
||||
|---|---|---|---|---|---|---|---|---|
| Voltage [V] |
Output [W] |
Current [A] |
Speed [r/min] |
Torque [N・m] | ||||
| Specifications | DC24±10% | 90 | 5.5 | 3000 | 0.3 | 300～3000 | 7.0 | 0.45 |
対応ギアヘッドの仕様
| Pairing Gearhead Model | Gear Ratio [1/x] |
|---|---|
90G15M | 1/15 |
90G30M | 1/30 |
90G60M | 1/60 |
90G120M | 1/120 |
